Switches 1 to 7
Switches 8 to 10
Switches 13 to 20
Switches 11 and 12
Single Pole Single Throw
Togle Switch (SPST)
2-Pin Female Connector
Spring Return Push Button

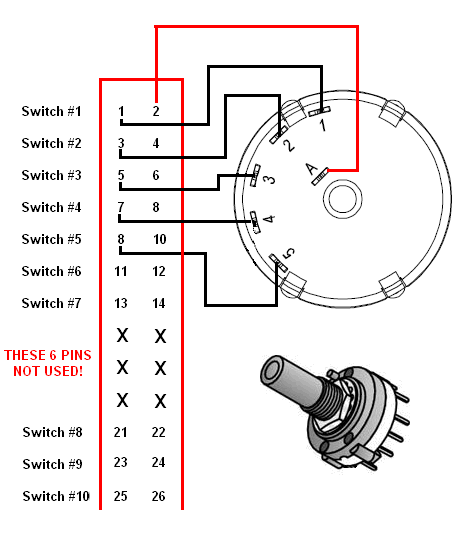

A Mech. Rotary Switch can also be wired to "Switches 13 to 20" This can be used with your OFF, Mag R, Mag L, Mag Both and START Ignition Switch
J2
J2
J1

website counter

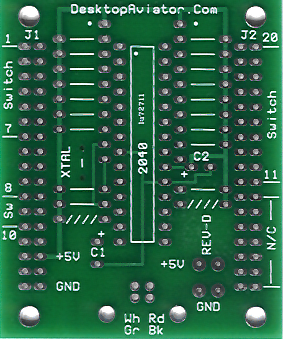

Wiring the 2280 Board to Toggle, Push Button & Rotary Switches
The 2280 Board can be purchased at:
http://www.desktopaviator.com/Pages/Boards/index.html
