INSTALLATION INSTRUCTIONS

for the CESSNA Avionics Panels







Below are the Instructions to install the CESSNA Avionics Panels

(MODEL #s 705B, 805B, 905B, 1010, Switch Panel 1020)



Desktop
Aviator

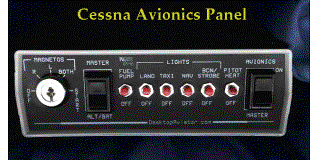

Avionics Panel Model 705B

If you purchased the CESSNA Avionics Panel Model # 705B, you need to install a 9-volt Battery for operation. To do this, flip the Panel over and locate the two housing screws; Remove both. Carefully Left the TOP half of the Housing (Making sure the front and back panels are stilled fastened to the BOTTOM Housing Panel. Locate the Battery Clip and install a 9-volt Battery. CAREFULLY Re-install the Housing Top Panel and fasten with the two screws removed previously.



Now take the 15-pin Male Connector of the USB to 10 Button INTERFACE and mate it with the 15-pin Female connector located on the Back of the Panel's Housing. NOTE: For the PROPER OPERATION of the Model 705B Avionics Panel, it MUST be Mated with a Model # 705 USB to 10 Button INTERFACE. Then Connect to the USB Port of your Computer.



The Model 705B comes with a Power On/OFF toggle switch located on the back of the housing. It is advisable that when not in use, this switch be placed in the DOWN (off) position to conserve the Battery.






Avionics Panel Model 805B



If you purchased the CESSNA Avionics Panel Model # 805B, NO 9-volt Battery is Needed. Power is supplied to the Panel from the USB to 10 Button INTERFACE Model # 805.



Now take the 15-pin Male Connector of the USB to 10 Button INTERFACE and mate it with the 15-pin Female connector located on the Back of the Panel's Housing. NOTE: For the PROPER OPERATION of the Model 805B Avionics Panel, it MUST be Mated with a Model # 805 USB to 10 Button INTERFACE. Then Connect to the USB Port of your Computer.

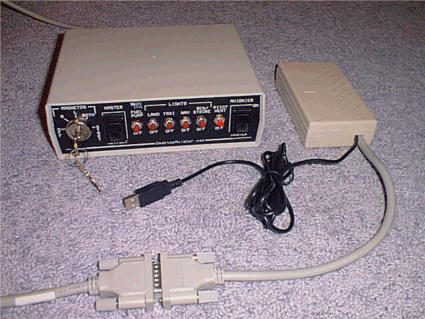

THIS PHOTO SHOWS HOW THE CESSNA AVIONICS PANEL IS MATED TO EITHER THE 705B

OR 805B USB TO 10 BUTTON INTERFACE





Avionics Panel Model 905B



The Avionics Panel Model # 905B Does not need either a 9-volt Battery or a USB to 10 Button INTERFACE. All you need to do is to connect the USB plug to the USB Port of your computer. Program the switches using your FS2002, FS2004 and in minutes, you'll by flying HIGH in your Cessna Look-a-like Panel.









Compatibility Chart



CESSNA Avionics Panel Model #     USB to 10 Button INTERFACE

                    705B                             705

                    805B                             805

                    905B                    NO INTERFACE REQUIRED

                    1010                    NO INTERFACE REQUIRED




Installing the CESSNA Avionics Panel (For All Models)

NOTE: Model 1010 & 1020 Programming: The Cessna Avionics Panel (Model 1010) & the Avionics Switch Panel (Model 1020), programs just like our 705B, 805B & 905B. The only difference is that you FLIP Toggle Switches instead of pressing buttons. So, if you purchased the 1010 or 1020, just follow the Easy Programming Instructions Listed Below. In the case of the Model 1020, just choose the switch function you wish the Toggle to emulate from the list seen on the 'ASSIGN' window found in your copy of Flight Simulator.

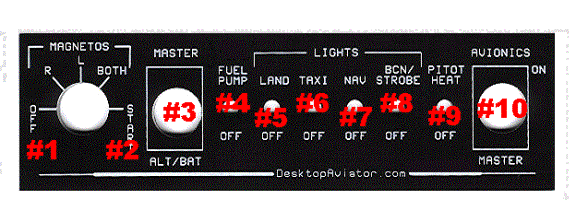

Above is a photo of the Avionics' Front Panel. Notice the Numbers assigned to each Switch and Push-button. These switch numbers will be used when we Program our Flight Simulator to recognize which button is pushed. The IGNITION Switch has 2 numbers assigned to it. #1 is the Engine OFF, while #2 is Engine ON position. We'll get into programming the Flight Simulator in just a moment.

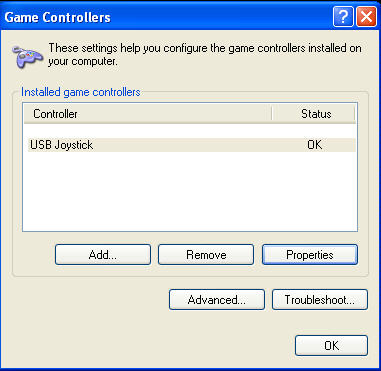

 With your computer running; Click on the 'START' Icon; then 'Control Panel', then 'Game Controllers'. With your Avionics Panel connected to the USB Port of the computer, you will see the window illustrated above. Click on 'Properties'.

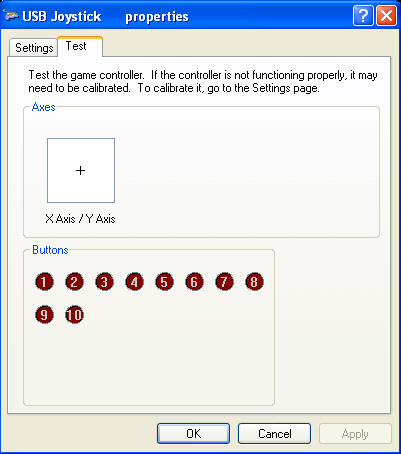

Turn the Key in the Ignition Switch to its 'OFF' Position. Note that the #1 RED Ball Lights. Turn the Key to the Ignition Switch's START Position. Note that the #2 RED Ball light up. Now turn the Key to its 'BOTH' Position. Now Flip the MASTER ALT/BAT Rocker Switch to its On then OF Position. Note that the #3 RED Ball Flashes "ON' then goes 'OFF" in about 1/2 second. This is normal. Flip the MASTER ALT/BAT Rocker again. The #3 Ball flashes again. If you flip the AVIONICS MASTER, the #10 RED Ball will flash just like the ALT/BAT Rocker did.



Now press Buttons #'s 4 to 9 (one at a time) and note the corresponding RED Ball illuminates. This time the Ball lights for as long as you keep the button pressed. The AXIS window (X Axis/Y Axis) will NOT Operate at this time.








Programming Your Flight Simulator



FSUIPC



Button Assignments for the Model 1010 using FSUIPC

Below is the Suggested Toggle Switch Assignments for the Model 1010 Avionics Panel using the Licensed version of FSUIPC. Using the available assignment listings contained within the FSUIPC program, you can select any one of over 200 Button/Toggle functions. For more information on loading and operating FSUIPC see the accompying instruction manual that came with the program.

BUTTON #1 MAGNETO_OFF
BUTTON #2 MAGNETO_START
BUTTON #3 TOGGLE_MASTER_BATTERY_ALTERNATOR
BUTTON #4 TOGGLE_ELECT_FUEL_PUMP
BUTTON #5 LANDING_LIGHTS_TOGGLE
BUTTON #6 TOGGLE_TAXI_LIGHTS
BUTTON #7 TOGGLE_NAV_LIGHTS
BUTTON #8 TOGGLE_BEACON_LIGHTS
BUTTON #9 PITOT_HEAT_TOGGLE
BUTTON #10 TOGGLE_AVIONICS_MASTER






Available Flight Simulator Assignment Functions



With the following instructions, it is assumed that you are already familiar with programming the 'SETTINGS' / 'ASSIGNMENT'   window in your version of MS Flight Simulator. If this operation is unfamiliar to you, you can go HERE (Installing the Brake Pedals on Your Flight Simulator) for an in-depth explanation to this procedure.



With your Flight Simulator running, Click on the 'SETTINGS' link then 'ASSIGN'. Highlight under 'Joystick Type' USB Joystick as seen below. We will now program the FS to acknowledge the switch settings of the Avionics Panel. To make things a bit easier, I will be going down the 'All Commands' (Event Category) in alphabetical order. When we reach the appropriate EVENT, I'll tell you which of the 10 buttons on the Avionics Panel to Press. OK? So lets Start.

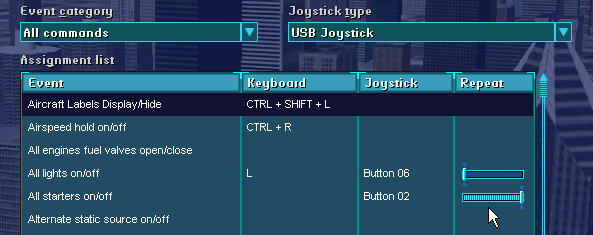

Locate 'All Lights on/off' (see above) Assign Button #6 of the Avionics Panel to this Event. The REPEAT Bar is to be all the way to the LEFT.



Locate 'All Starters on/off' - Assign Button #2 to this Event. Button #2 is located on the Ignition Switch. Flip the Key to the 'START' position then click OK. NOTE: The Repeat Bar is ALL THE WAY TO THE RIGHT. This IS IMPORTANT. Using your mouse, just drag the Repeat Bar to the Right. Then Click OK.

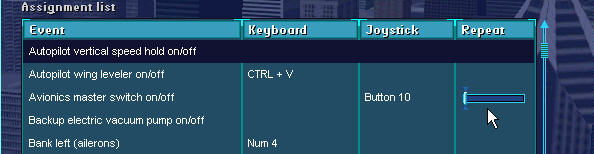

Now, Scroll down to 'Avionics master switch on/off' - Assign Button #10 to this Event. For the programming of the remaining switched, the Repeat Bar is to remain in its LEFT position.

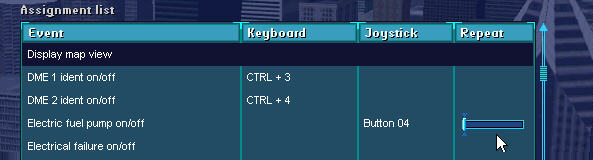

Scroll down to 'Electric fuel pump on/off' - Assign Button #4 to this Event.

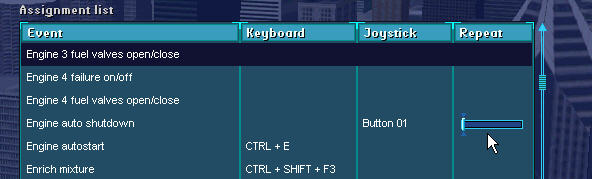

Scroll down to 'Engine auto shutdown' - Assign this Event to Button #1.

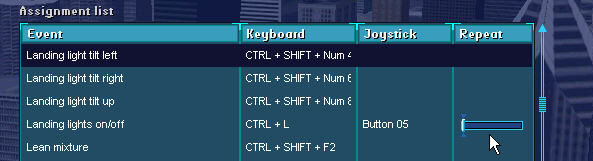

Scroll down to 'Landing Lights' - Assign this Event to Button #5.

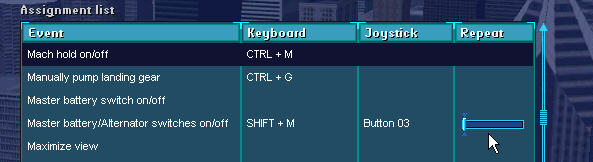

Scroll Down to ' Master battery/Alternator switches on/off' - Assign this Event to Button #3.

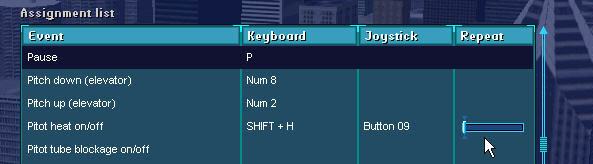

Scroll Down to 'Pitot heat on/off' - Assign this Event to Button #9.

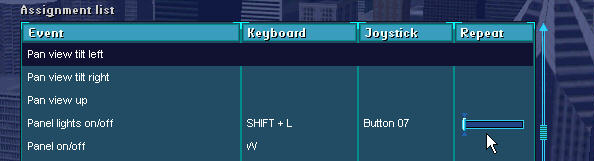

Scroll down to 'Panel lights on/off' - Assign this Event to Button #7.

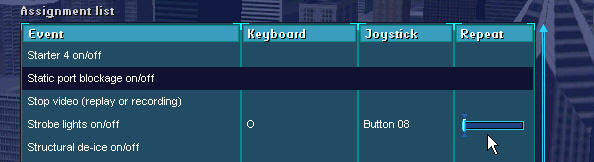

Finally, Scroll Down to 'Strobe lights on/off' - Assign this Event to Button #8.



NOTE that pressing the NAV and Strobe, you will not be able to see any difference to the aircraft during daylight flights. Program FS Clock for a time of day after sunset, then press the NAV Lights Button. The Instrument Panel will light up. Strobe Lights can be seen if you switch to an outside view of your aircraft. You will notice wing and tail lights flashing.



One other thing to take notice of; Microsoft did not provide any means to control the TAXI Lights in FS2002. In order to turn on the Taxi lights, I programmed 'All lights on/off' using switch #6. This will turn on the Taxi lights but it will also turn on the Landing, NAV and Strobe lights as well. If this Assignment is not to your liking, it is an easy matter to re-program the #6 Button to some other setting; like Carb Heat.




Out of Sync Switches



Every so often, you might find that a switch on the Avionics Panel is not set as per the Instrument Panel on your Monitor (AKA Out of Sync). If you fine that the MASTER ALT/BAT and/or MASTER - AVIONICS switch is not in Sync with the Instrument Panel, just take your mouse and LEFT-Button CLICK on the Master Alt/Bat (and/or Avionics) on your monitor until BOTH switches match the Settings found on the Avionics Panel.




Using Your Cessna Avionics Panel



Once you have your Avionics Panel programmed via your Flight Simulator, it's now time to take it for a spin. Load your version of Microsoft's Flight Simulator. When Loaded and Running and Before you select the aircraft and flight, make sure the Avionics Panel's MASTER ALT/BAT is ON (#3 switch - See Above) MASTER AVIONICS Switch is ON (# 10 Switch) and the Ignition Switch key set to MAGNETOS BOTH Setting. These are the Start-Up Settings of an un-modified Flight Simulator Program.



With your Cessna's Engine running (Check Tachometer - should be reading about 1200 RPM) Now turn the Ignition Key to its OFF Position (#1 switch). If the Panel was programmed correctly, you will see the Fuel Mixture lever begin to Extend (Pull out) from its FULL IN (Fuel Mixture set to RICH) position automatically. Within a second or two, the Engine Cuts-off. Now, with the Engine OFF  turn the MASTER ALT/BAT to its OFF Position  notice that ALL Electrical equipment turns off. Now, turn the AVIONICS MASTER Switch to OFF



To Restart the Engine, Flip the MASTER ALT/BAT to its ON Position. Your Panel's electrical systems comes to life; LED readouts light up, Meter Pointers move to their NORMAL Take-off Positions. To assist the Fuel in getting to the Engine, the FUEL Pump should be turned on at this time( #4 Switch). Press the FUEL PUMP Switch and notice that the Toggle switch displayed on your computer screen also flips UP at the same time. To turn OFF the FUEL PUMP, just press the #4 button again. Again, note that the Monitor's toggle switch also flips DOWN as the same time.



Using your CH Flight Yoke or Keyboard Mouse, set the Fuel Mixture to its FULL RICH setting (all the way in). Turn the Ignition Key to START (#2 switch) and keep it there until the Engine is Running on its own. When running, flip the Key to MAGNETOS - BOTH Position (In reality, just like in a car, there is an internal spring that will automatically return the Key from its START Position back to MAGNETOS - BOTH position. I would have loved to use a REAL Cessna Ignition Switch in the Panel but the switch costs about $50.00 plus shipping - I thought its price was too high to simulate reality so I decided to make use of a standard 5 position Keyed switch). Also, take note that the Ignition Key can be removed from the switch ONLY when the Key is in the MAGNETOS L(eft) Position. If you wish, you can now flip the AVIONICS MASTER Switch to ON.



Depending on your 'Check-List', the Fuel Pump can be turned OFF at this time, so press the FUEL PUMP button (#4 button). For Night Flying, you need to turn ON some outside Lights and Strobes. To turn the LANDING lights ON, just press the LAND Button (#5 button) To illuminate the Cessna's Instrument Panel, press the NAV Button (#7 button). Wingtip Strobes can be turned on by pressing the BCN/STROBE Button (#8 button). Note that during a Daylight Flight, you WILL NOT be able to see the lighting of the Instrument Panel or Landing Lights or Strobes. Also note that for some reason, Microsoft did not program into its simulator the visual flipping Up or Down of some of its Toggle Switches on the computer monitor (NAV, STROBE ect.) The lack of visual indications that these switches have been turned ON or OFF is NO indication that your Cessna Avionics Panel is not working. It IS 100% OPERATIONAL.



Another problem Microsoft did not take into consideration is the use of the TAXI Light switch. There is NO available link for the programming of the TAXI Light ( If anyone knows of a programming FIX to this problem, please email me). The only available link is "Turn ON All Light' . By programming the TAXI (#6 button) Button to this link, pressing this Button, the LAND, TAXI, NAV and BCN/STROBE lights will go ON at the same time. Also note that all 4 toggle switches on the screen will flip-up. If this setting is not to your liking, by all means, re-program it for another function like 'Carburetor Heat' or some other useful function.



The final button not mentioned is the PITOT HEAT (#9 button). While flying at higher altitudes, the IOAT (Indicated Outside Air Temperature) gets close to freezing, water vapor can freeze and clog the Pitot Tube (the Pitot Tube can be seen on the underside of the left wing of the Cessna Skyhawk), resulting in erroneous readings on your instruments. To prevent ice from clogging the Pitot Tube, Turn ON the HEAT by pressing the PITOT HEAT Button (#9 button). The on screen Toggle switch will also flip up at the same time.



If you have any comments or .DLL programs that can make the Cessna Avionics Panel more pleasing to the user, Please feel to contact me at: . . . . .




. . . . Support@DesktopAviator.com
