Easily Add:

Up to 6 Rotary Encoders (Easily Adjust Your NAV/COM Radio Freq. & Autopilot ect.)

8 Ten-Bit Analog Inputs (Build Your Own Throttle Quadrant)

Up to 12 Digital Switches (Add Your Own Push Buttons or Toggle Switches)

Using 1 USB Port!

With the 2090 and a little Help from Desktop Aviator you can create the most Advanced
Aircraft Avionics Panel you can imagine.

NOTE: To use the SUPER Rotary Encoder Board to its Full Potential, the Licensed version
of FSUIPC is Highly Recommended.

FSUIPC is Available for FS2002, FS2004 and FS X

For Complete Installation Instructions, Please Click HERE

We also include instructions for building your own NAV/COM RADIO!

For the Experienced Electronics Buff, the 2090 can also be wired for a maximum of 16 Rotary Encoders or 32 Digital Switches
in Addition to the 8 Analog Axis' using the Advanced Construction Techniques seen HERE (Installation Instructions).

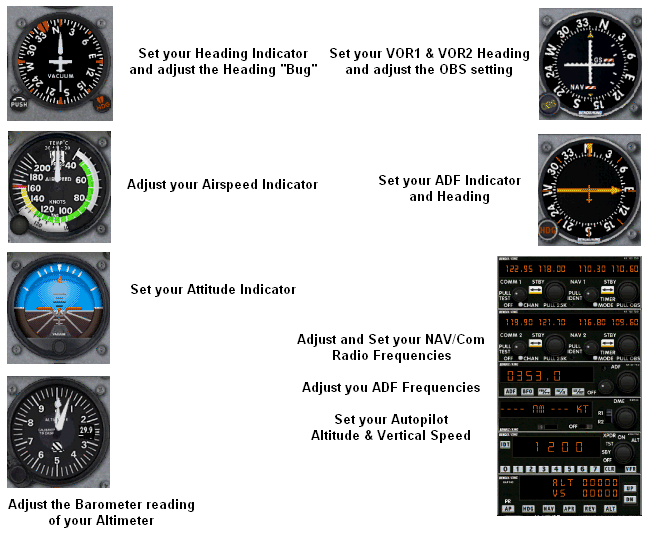

With a few Rotary Switches, Slide Assemblies and Switches, you can:

And that is only the Beginning!
Design and Build your own Rudder Pedals; Throttle Quadrant and MORE!

Make you Own MULTI-TURN Elevator Trim Wheel and Rudder Trim with the 2090

For the proper operation on the Encoder Board, you need to Download
the Encoder Utility Program. This program allows you to adjust "Pulse
Timing" and "Pluse Width" on each of the 6 Available Rotary Switches
on the 2090 Board. The program will also allow you to connect a number
of Rotary Encoder Boards to the USB Port of same computer while
allowing you to keep track on timing pusles on each and every Rotary
Switch available on your system. This is accomplished by the unique
Serial Number programmed into each 2090 Board. Add up to ten 2090
Boards to your Computer's USB Port. More can be added but it is advised
that a Power USB Hub be used to prevent a current drain on your computer
system.

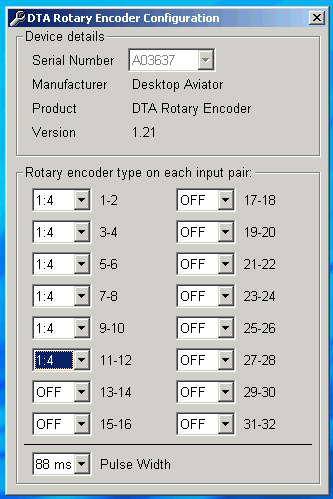

To the left is a photo of the Encoder Utility Program showing suggested
settings for the first six Rotary Switches.

Please note that the Utility Program shows 16 available Rotary Switches,
these aditional settings are for future expansion and is not available on the
2090 Board.

To Download this FREE program; click HERE

To make the interfacing of your Rotary Switches, Slide Controls and Push Buttons as painless as possible, we also include
fourteen 3 and two 6 pin Female Connectors. Just solder the wires from your switches to the connectors and place them on
the .1 inch spaced Male Headers on the Encoder Board. What could be easier?

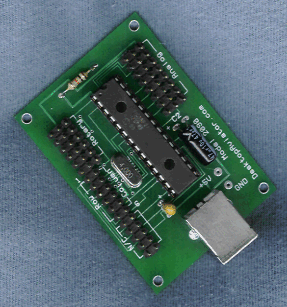

SUPER Rotary Encoder Board Model 2090

Rotary Switches are the backbone of Flight Simulator Instrument Panels. Change Navigation / Comm Radio Frequencies & Autopilot Altitudes with the ease of rotating a knob. Design your own Throttle Quadrant; Design your own Rudder Pedals; Incorporate up to 20 Push Buttons or Toggle Switches (additional circuitry needed for Toggle Switches) using only one SUPER Rotary Encoder Board from Desktop Aviator.

The SUPER Rotary Encoder Board Measures: 1.72 inches by 2.413 inches.

Small in Size but a POWERHOUSE of advanced USB Technology.

Super Rotary Encoder Board

$49.95

Please Note: Due to the Expected Demand for this Unique item,
there may be a 10 day delay in shipping due to Parts Shortages.

SUPER Rotary Encoder Accessories

Inexpensive Rotary Encoders with N/O Switch
This rotary encoder by Panasonic features a shaft rotation angle: 360° (endless), output resolution of 15 pulse/360°, detent points 30 (each detent angle 12° ± 3°), rating DC 10V @ 1mA (each bit), contact resistance between terminals 1ohm max, and insulation resistance 50 megohm minimum at 250VDC between all terminals and shaft. This also has a push ON momentary switch. Size about 0.50" sq. Mounts in a 0.30" hole in a panel. Complete with panel nut. Has 5 leads (2 for switch). Shaft size is 0.70"L x 0.25"Dia. "D" shaft. New. The Proper 2090 Utility Setting for this type of Rotary Encoder is: 1:2 with a Pulse Width of 72msec. Two 1N4148 Diodes also included.

Rotary Encoders from Panasonic $2.25 ea

Build Your Own Cessna Style Throttle Quadrant

Build your own Push-Pull Throttle Quadrant with these Easy to Add Slide Assemblies. Just solder 3 wires from the Slide Control to a Super Rotary Encoder Board using the supplied female connectors.

Purchase the Model 1090 Side Assemblied with the 2090 Rotary Encoder and save on each Slide Assembly.

Purchase 1 Super Rotary Encoder Board + 1 Slide Assy.

Rotary Encoder Board - $49.95 - Slide Assy. - $9.95

$59.90

Purchase 1 Super Rotary Encoder Board + 2 Slide Assy.

Rotary Encoder Board - $49.95 - Slide Assy. - $19.90

$69.85

Purchase 1 Super Rotary Encoder Board + 3 Slide Assy.

Throttle, Fuel Mix, Prop Pitch

Rotary Encoder Board - $49.95 - Slide Assy. - $29.85

$79.80

MORE! SUPER Rotary Encoder Accessories

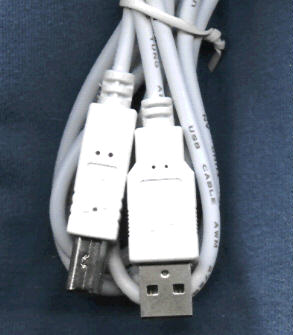

30 inch Retractable Series "B" USB Cable

Series "B" USB Connector for mating with our Model 2090 and the Model 2040 Circuit boards. A nice little gadget to have around. Eliminates the "clutter" behind your Avionics Panel. Use only the amount of cable you need. Store the rest.

$2.50 ea.

Plastic Faceplate(NEW!)

Used to mount your Push Buttons, Toggle, Rocker Switches when designing and wiring your own Panel. This Attractive Panel is made of durable Black Plastic that measures 7.375 inches by 2.75 inches. The Panel is Textured on the front, with a flat finish on its back. Just Drill the required hold size mount your Switches or even the Push-Pull Cessna Slide Assemblies to build your own Throttle Quadrant. Photo shows Slide Assemblies mounted to Faceplate. All faceplates are NEW without Holes.

Then add that Finishing Touch by downloading Actual Aircraft Panel Decals.
SPECIAL SALE PRICE $0.75each With any $10.00 Purchase

Attractive Gray Plastic Cabinet (new)

A Very Attractive Plastic Cabinet used to mount your Push Buttons, Toggle, Rocker Switches. This is the same cabinet we use on all of our Avionics Panels (Model 1010, 1010 B, 1030/1040HiRES Throttle Quadrant).

This Cabinet is made of durable Gray Plastic that measures 7.9 inches by 6.3 inches by 2.5 inches. The Cabinet also comes with two Textured Faceplates for the front and back.

$10.25 each

Rotary Potentiometer (Short Shaft)

This is a 100K ohm Rotary Potentiometer with a Linear Taper output. This item is used extensively with homemade Flight Simulator Panels.

The Pot can be easily connected to our Rotary Encoder Board with just 3 wires. Design your own Rudder Pedals or can be used on your instrument panel to perform various functions. Combined with our Rotary Encoder, the possibilities are Endless. Shaft is .25 inches in Dia. & .5 inches in Length

100K Ohm Linear Potentiometer (Short Shaft)

$1.25

Rotary Potentiometer (Long Shaft)

This is a 100K ohm Rotary Potentiometer with a Linear Taper output just as the pot seen above except is has a 1.32 inch long 1/4in diameter shaft. Just perfect for building your own Elevator Trim Wheel.

Easily connects to our Rotary Encoder Board.

100K Ohm Linear Potentiometer (Long Shaft)

$1.75

1N4148 Glass Diode

Inexpensive Glass Diodes used in conjunction with the Digital MATRIX input of the 2090.

Can also be used for the series Diode needed for each of the Rotary Switches. Each switch requires 2 Diodes.

12 pcs for $1.00

36 inch Series "B"
USB Cable

Standard USB Connector for mating with our Model 2090 and the Model 2040 Circuit boards. Series "A" connector on one end and a Series "B" on the other.

$2.50 ea.
