SORRY! The 805 USB/10 Button INTERFACE

is No Longer Available. Please

consider our Model 2040

USB to 20 Button INTERFACE



Interfaces to Your Switches using two 17x2 Ribbon Cables









 Best Viewed at 1024 by 768 Resolution


Desktop Aviator
HOME




Click HERE for
a LOOK at
Our $$$ SAVING
eBay Auctions.


We Accept Credit
Cards Through:

PAYPAL





123inkjets.com - Printer Ink, Toner, & More











* SUPER Rotary Encoder
* USB Junction Box # 2130
* Pulse Generator #2120

Avionics Panel  # 2100

USB Junction Box # 2050

Avionics Switch # 1020

THROTTLE Quadrant

* USB Adapter # 2097

NAV/COM Radio # 2010

THROTTLE Slide Assembly
Elevator Trim Wheel Kit
IL-2 & Falcon Controls
AUTOPILOT Panel # 2020

* USB to 20 Button Interface

* * * * * * * * * *


Free Software Downloads

Recommend Aviation LINKS
Installation Instructions
Parts for Your Flight Sim

Flight Sim Articles

DTA Business Cards

DTA Banner Page


Easily Interface up to 20 Toggle or Push Button Switches to

Microsoft's Flight Simulator FS2002, FS2004,
FS X and X-Plane


Completely Assembled/Tested





* Just Plug Interface into USB Port
* Interface sensed as
"Digital Switch 2040"
* Add Up to 20 Toggle/Push Button Switches
* Use FS 'Settings' to Assign Functions
* Uses Standard USB Connector
* Uses 17x2 Ribbon Cable
* NOTE: Switches Not Included
* NO Outside Power Required
* Works with All FSUIPC Digital Functions
* Use FS 'Settings' to Assign Functions

* Requires a  Series "B" Female USB Cable
* Easy Programming Instructions






Dramatically Increase the realism of your Cessna 172 flight by adding outboard control panels in place of point and click Mouse or keyboard input.

You can EASILY Add up to 20 Spring Return Push Button and Toggle Switches (requires additional H11AA1/2 circuitry) to your Microsoft Flight Simulator FS2000, FS2002, FS2004, FS X or X-Plane using One, Inexpensive Circuit Board.

Sense the realism of flipping a toggle switch to turn your 'Fuel Pump' On or Off.

Or press a Button to Display you GPS or Radio Shack on-screen . . .


With Our NEW! '20 Button Interface'

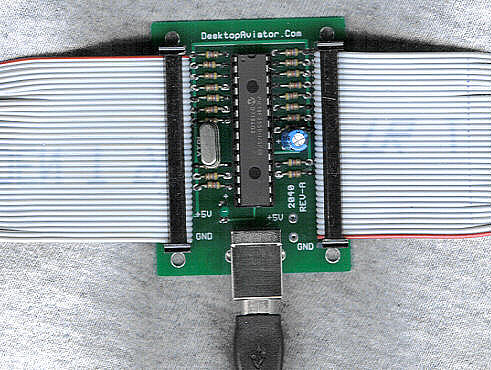

Just connect your Switch Array to the INTERFACE using

Two 17x2 (34 pin) Ribbon Cables as shows above.

USB Interface Measures: 1.88 x 2.30 inches

The USB Cable Not Included
Click HERE for Wiring & Installation Instructions


USB to 20 Button Interface
Microsoft Flight Simulator FS2000, FS2002, FS2004

Any Questions? Feel Free to contact us at:
Support@DesktopAviator.com

$30.00  Plus Shipping/Handling
Ordering Information . . . .
For Purchase Using PayPal

Our PayPal Account name is: Support@DesktopAviator.com



PLACE YOUR ORDER HERE!
U.S. & Canadian Addresses (For International - See Below)
USB to 20 Button Interface  (# Model 2040)

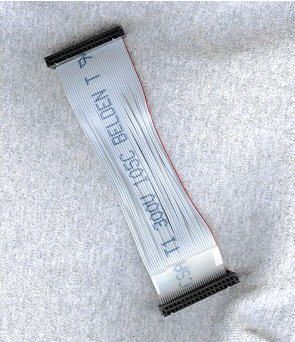

Also Available - 17x2 Ribbon Cables


Cables Measure 6 inches long with both sides terminated with a standard 17x2 Female Connector

$1.85 each






Mini-Push Button Switch


SPST miniature momentary pushbutton switch. Push-on, release-off. Press-fit in 0.31" diameter chassis hole. 0.39" diameter black bezel. Green button extends 0.29" above mounting plane in off-position. Switch body is 0.31" diameter x 0.5" long (excluding pc pins) below mounting plane. The perfect addition to our 2040 Interface and the Model 2050 Junction Box.





For Pricing Information, Please GOTO our PARTS Page at:

http://www.desktopaviator.com/Products/parts.htm

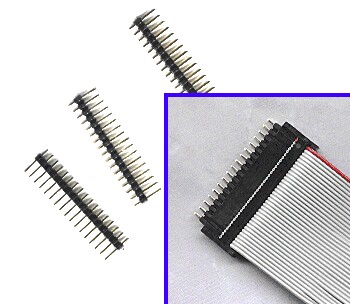

17x2 Male HEADER Connector


These 34 pin Male Headers mate with the 17x2 Ribbon Cables for Easy soldering of switches to our 2040 Digital Switch. Headers can also be used with PC Boards (0.10in centers)

$0.50 each









Pre-Programmed 18F2550 Chips

Now Design your own USB to 20 Button INTERFACE with our pre-programmed PIC computer chip. This is the 18F2550 chip we use on our Model 2040 Board. The Schematic for the 2040 can be Downloaded HERE.

$16.99 each




Plastic Faceplates (new)

Used to mount your Push Buttons, Toggle, Rocker Switches when designing and wiring your own Panel.  This Attractive Panel is made of durable Black Plastic that measures 7.375 inches by 2.75 inches. The Panel is Textured on the front, with a flat finish on its back. Just Drill the required hold size mount, wire the Switches with the 15 pin Cable and connect to the USB to 20 Button INTERFACEACE.

Then add that Finishing Touch by downloading Actual Aircraft Panel Decals.

SPECIAL SALE PRICE
$0.75each With any $10.00 Purchase



For Additional Avionics Components,
Check out our Parts Page:

http://www.desktopaviator.com/Products/parts.htm






 Attention INTERNATIONAL Customers . . .

If you live outside the U.S. & Canada, and wish to purchase this item; Please email us your
complete address. I will be more that happy to email you the required shipping Fees.

Any Over Payments are Quickly REFUNDED via Paypal.

For International Sales, Please read the Terms & Conditions
for Worldwide Shipping


Click Here to eMail us:
Support@DesktopAviator.com
