USB to 31 Button INTERFACE
Models 2235-DP / 2237-SP / 2238-CON

EASILY Connect your Toggle and/or Push Button Switches to the USB Port!

Click here to join DesktopAviator
Click to join DesktopAviator
All Aviation Sites
GAC TOP 100 SITES - www.globalaircraft.org
DirectoryAviation
Links to aviation directory
resources & information websites

AVIATION TOP 100 - www.avitop.comAvitop.com
Avitop.com

Desktop Aviator HOME Page
Contact us
International Shipping Info

Completely Assembled/Tested
* Just Plug Interface into USB Port
* Add Up to 31 SPST Toggle Switches
* Use FS 'Settings' to Assign Functions
* Uses Standard USB Connector
* NOTE: Switches Not Included
* NO Outside Power Required
* Works with All FSUIPC Digital Functions
* Use FS 'Settings' to Assign Functions
* Requires a  Series "B" Female USB Cable
* Easy Programming Instructions

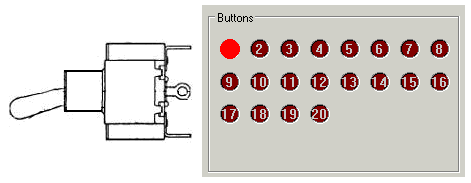

The 2235-DP Output
The 2238-CON Output
Dual Pulse Output 1/4 sec
Constant ON Output with Press of a Button


Single Pulse Output 1/4 sec
The 2237-SP Output
Note: Animations illustrate only 20 of the 31 (2237-SP supports 30 outputs) available outputs supported.

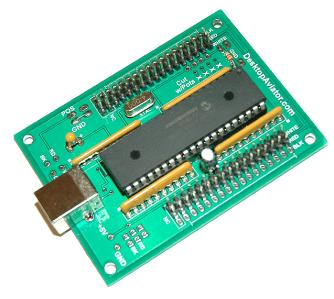

The 22xx Series of USB Interfaces are Easy to install USB Interfaces that supports up to 31 SPST Toggle Switches (Model 2235-DP / 2237-SP (15 SPDT Toggle Switches)) or Spring Return Push Buttons (Model 2238-CON).

Just plug these boards into your computer's USB Port; when connected, your computer will sense and load the appropriate driver software needed for the proper operation of the boards. What can be easier?

Each board is programmed with a unique Serial Number; thus allowing more then one board to be connected to your computer at the same time without any data conflicts. Also, these serial numbers and flight function settings are "remembered" by your favorite Flight Simultor software. So no need to re-program your needed Flight Functions every time you load your flight sim.

The 22xx Series of USB Interfaces support the flight settings seen in MS2002, MS2004, FSX FSUIPC and X-Plane.

Every board is shipped with Thirty-four 2-Pin connectors. Just solder 2 wires from either a Toggle Switch or Bush Button to the connectors. Then insert the connector into the 2x17 Header Conectors on the board. Then program with your Flight Functions. That's It!

USB to 31 Button Digital Interface
Microsoft Flight Simulator FS2000, FS2002, FS2004 & X-Plane
Any Questions? Feel Free to contact us at:
DesktopAviator@USA.com
$58.00 Plus Shipping/Handling
2235-DP / 2237-SP / 2238-CON

Comes with one 34 pc Connector Packet (2-Pin)

Ordering Information . . . .

For Purchase Using PayPal
U.S. & Canadian Orders ONLY PLEASE! (For International - Click HERE)
Installation Instructions Can be Found HERE
Click HERE to use your PayPal Account
Click HERE to place your order using our Secure Online Credit Card Server (HTTPS).
Or you can Request an Invoice to be emailed to you. Then just follow the LINK provided in this email and use your PayPal Account or Major Credit Card to complete the Transaction.
Support@DesktopAviator.com

2235-DP
$58.00

Place Your Order HERE
Each Board measures:
3 1/8 by 2 3/8 inches

   Toggle Switch (SPST)

Standard Toggle Switches, Mounts in a 1/2 hole with Solder tabs. Rated 4 Amps @ 125VAC. Just solder  wires to each terminal of these switches; plug into the 2235. That's It!
Here is the Suggested SPST Toggle Switch you can use with the 2235-DP Interface.

To purchase, just click on the PayPal Button icon.

Remember, with PayPal, you can make your payment using your PayPal Account or any Major Credit Card.


Click HERE to use your PayPal Account
Click HERE to place your order using our Secure Online Credit Card Server (HTTPS).
Or you can Request an Invoice to be emailed to you. Then just follow the LINK provided in this email and use your PayPal Account or Major Credit Card to complete the Transaction.
Support@DesktopAviator.com

2237-SP
$58.00

Above is the Suggested SPDT Toggle Switch you can use with the 2237-SP Interface. The 2237-SP supports 30 outputs. Each SPDT Toggle switch requires 2 outputs (On/Off). So the 2237-SP will allow for 15 toggle switches.  Mechanical Rotary Switches (not Encoder Switches) can also be used with the 2237-SP Interface.


Click HERE to use your PayPal Account
Click HERE to place your order using our Secure Online Credit Card Server (HTTPS).
Or you can Request an Invoice to be emailed to you. Then just follow the LINK provided in this email and use your PayPal Account or Major Credit Card to complete the Transaction.
Support@DesktopAviator.com

2238-CON
$58.00


Click HERE to use your PayPal Account
Click HERE to place your order using our Secure Online Credit Card Server (HTTPS).
Or you can Request an Invoice to be emailed to you. Then just follow the LINK provided in this email and use your PayPal Account or Major Credit Card to complete the Transaction.
Support@DesktopAviator.com

2237-SP
$58.00
  Toggle Switch (SPDT)

Standard Single Pole Double Throw Toggle Switches, Mounts in a 1/2 hole with Solder tabs. Rated 4 Amps @ 125VAC. Can be used on our Model 2237 Board.
Here is the Suggested Spring Return Push Button switch you can use with the 2238-CON Interface.

To purchase, just click on the PayPal Button icon.

Remember, with PayPal, you can make your payment using your PayPal Account or any Major Credit Card.


Similiar to the 2120
Similiar to the 2160
Similiar to the 2040
Attention International Customers

If you live outside of the U.S. & Canada and wish to purchase this item: Please email us your complete shipping address. We will be more then happy to email you the required shipping Fees.

Any Over Payments are Quickly REFUNDED via PayPal.

For International Sales, Please read the
Terms & Conditions for Worldwide Shipping


Click Here to eMail us:
DesktopAviator@USA.com


Flight Simulator LINKS


website counter
* Comes in Three Variations:

2235-DP - 1/4 Sec Dual Pulsed Output
(similiar to our 2120)
2237-SP - 1/4 Sec Single Pulse Output (similiar to our 2160)
2238-CON - Constant Output (similiar to our 2040)

Momentary Push Button Switch (Square Top)

This is a Momentary Push Button Switch with a GREEN Cap that measures 14.5mm x 14.5mm and is 33mm long and mounts in a 12mm hole.

PUSH BUTTON SWITCH
Mechanical Rotary Switch 1 Pole 12 Position

Need a Selector Switch on your Flight Sim Cockpit? Well this switch will fit the bill nicely. Team it up with our 2160 USB Interface. 1/4 inch diameter plastic shaft. Click HERE for wiring.

1 Pole 12 Position Rotary Switch
Click HERE for
Availability
Click HERE for
Availability
Click HERE for
Availability
Click HERE for
