Thank you for your purchase of our Model 2160 USB to 20 Button Pulse Generator. The Switch Assignments are involved but can be easily accomplished with the help of the following information.
If you have any comments or need additional information on the use of the
USB to 20 Button Pulse Generator, please write us at:
Support@DesktopAviator.com
Desktop Aviator HOME Page
International Shipping Info

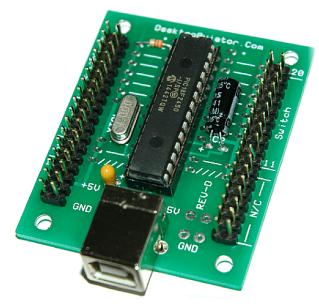

Wiring and Installing the 2160 Pulse Generator
Switches for the 2160 can be purchased from our PARTS Page at:
http://www.desktopaviator.com/Products/parts.htm
HAPPY FLYING!
The 2160 is an HID (Human Interface Device), so the needed Driver Software is already programmed into your computer. Your computer can sense more then one 2160 connected to its USB Port. 4, 5, 6 or more 2160s can be connected to the computer via a device called a USB Hub. If you plan on connecting multiple 2160s to your computer, it is recommended that you purchase a POWERED USB HUB. This device has its own external power supple. Using this USB Hub will prevent any damage to your computer's power supply due to any overloads.
