The NEW Model 2980 Parking Brake w/LED Indicator Light
USB Parking Brake Panel
Microsoft Flight Simulator FSx, X-Plane, MS2020 ect
Microsoft Flight Simulator FSx, X-Plane, MS2020 ect
Any Questions? Feel Free to contact us at:
DesktopAviator@USA.com
DesktopAviator@USA.com
Desktop Aviator HOME Page
International Shipping Info
Parking Brake Panel
With Amber LED Light
LED ON when Brake is set and OFF when Released
With Amber LED Light
LED ON when Brake is set and OFF when Released
Easily Increase the realism of your flight by adding this Parking Brake Panel. Designed with the look and feel of a REAL Aircraft Parking Brake, the 2980 adds the REALISM of Flight but without the HIGH Cost.
Can be programmed using the available Flight functions available in your FSX, FSX-SE, P3D, MS2020 and X-Plane Software (Parking Brake ON/Parking Brake OFF or Parking Brake SET/Parking Brake RELEASE) ect.
Due to the small footprint, the 2980 has a 5 inch wire bundle connecting the PB to its USB interface board.
Installation is the same as our Model 2405 PB.
Installation Instructions can be found HERE
Can be programmed using the available Flight functions available in your FSX, FSX-SE, P3D, MS2020 and X-Plane Software (Parking Brake ON/Parking Brake OFF or Parking Brake SET/Parking Brake RELEASE) ect.
Due to the small footprint, the 2980 has a 5 inch wire bundle connecting the PB to its USB interface board.
Installation is the same as our Model 2405 PB.
Installation Instructions can be found HERE
The Parking Brake Panel is mounted on a Black Fiberglass Faceplate measuring:
3.4 inches by 2.2 inches With 4 Mounting Holes; 1 at each corner
With USB Cable is Approx. 6 feet Long
The "T" Handle measures 2.30 inches in width and 0.55 inches at ite widest point. BLACK in color.
3.4 inches by 2.2 inches With 4 Mounting Holes; 1 at each corner
With USB Cable is Approx. 6 feet Long
The "T" Handle measures 2.30 inches in width and 0.55 inches at ite widest point. BLACK in color.
Our PayPal Account name is: Support@DesktopAviator.com
U.S. & Canadian Orders ONLY PLEASE! (For International - Click HERE)
* Just Plug Panel into USB Port
* Panel sensed as a USB Parking Brake
* Use FS/X-Plane Settings to Assign Functions
* Uses Standard USB Connector
* NO Outside Power Required
* Easy Programming Instructions
* With Amber LED to show Brake Position
* LED ON when PB Set and OFF when Released
* Also Supports up to 16 Single Pole Single Throw
Toggle or Rocker Switches
* Panel sensed as a USB Parking Brake
* Use FS/X-Plane Settings to Assign Functions
* Uses Standard USB Connector
* NO Outside Power Required
* Easy Programming Instructions
* With Amber LED to show Brake Position
* LED ON when PB Set and OFF when Released
* Also Supports up to 16 Single Pole Single Throw
Toggle or Rocker Switches
Parking Brake Panel
with Built in USB Interface
for Microsoft's FSX, P3D, X-Plane 10/11 & MS2020
Also Compatible with FSUIPC
with Built in USB Interface
for Microsoft's FSX, P3D, X-Plane 10/11 & MS2020
Also Compatible with FSUIPC
Click HERE to place your order using our Secure Online Credit Card Server (HTTPS).
Or you can Request an Invoice to be emailed to you. Then just follow the LINK provided in this email and use your PayPal Account or Major Credit Card to complete the Transaction.
2980
Parking Brake w/USB Series "B" Cable
$62.95
$62.95
Easily Mounts to your flight panel with 2 or 4 Screws.
Please Note: The Parking Brake Handle is Press-Fitted onto the shaft of the Push/Pull switch and can not be removed. If you try to remove the handle, you will damage the switch null and Voiding any Warrenty. DTA will not be held responsible for any breakage of this type. If broken, standard repair fees and return shipping cost will be imposed.

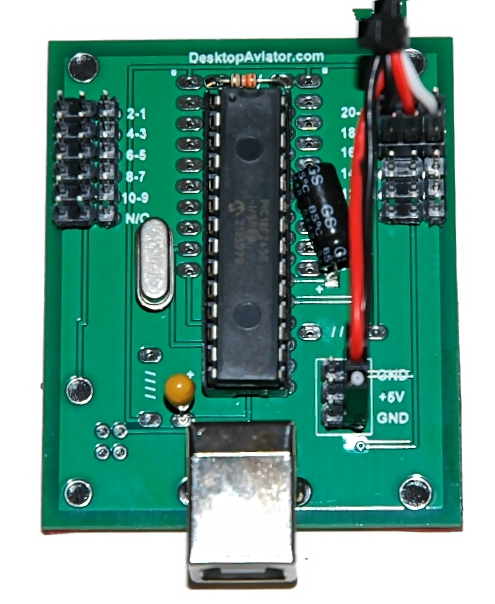

Pinout on the Parking Brake
Pins 16/15 to Push/Pull Switch
Black/Red/White
Horizontal conection
Black/Red/White
Horizontal conection
5Vdc for LED
Black/Red Vertical connection
White Wire has been cut off
Black/Red Vertical connection
White Wire has been cut off
4th positions from the bottom
